1/2 scale Trade Show Model of the Electric Vehicle (EV) Module



This is a 1/2 scale model of the Electric Vehicle (EV) Module for trade shows and presentations. The model has full interior that can be viewed through all-clear acrylic lid. In order to produce this model we employed unusually great variety of rapid prototyping methods: CNC, SLA, SLS, FDM and laser cutting. The housing was fabricated out of styrene sheets.
As for the acrylic lid - we attempted to outsource it from a few local companies that were proudly calling themselves "acrylic fabricators". We had a deadline to meet, our intention was to focus more on model making aspects rather than acrylic fabrication therefore outsourcing was a right call to make. Despite the fact that both companies and one more independent contractor were advertising their proficiency in acrylic fabrication, as soon as they saw that the part is something other than a simple box all of them decided to pass. Therefore we just CNC carved the parts and assembled the lid in house.
We will not call out the names of these companies - they will know it is about them, when they will read it. Such providers are a disgrace to the profession and professional courtesy. Shame on you!

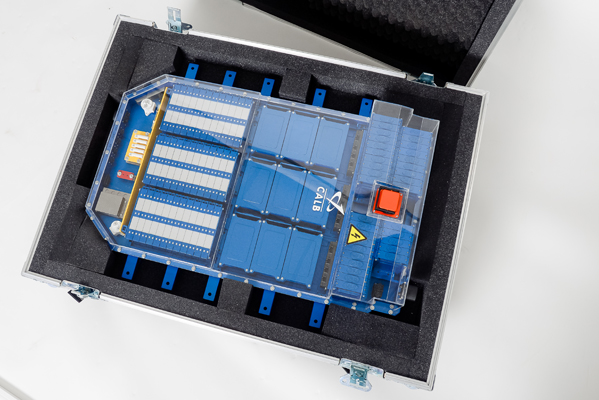

The model accompanied by custom transit case was shipped directly to a trade show in Detroit, where it made a great impression.

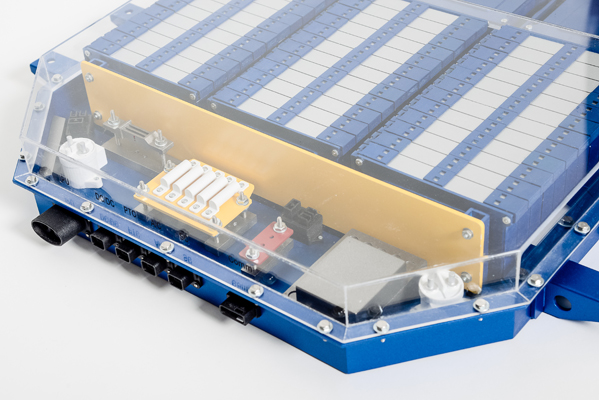

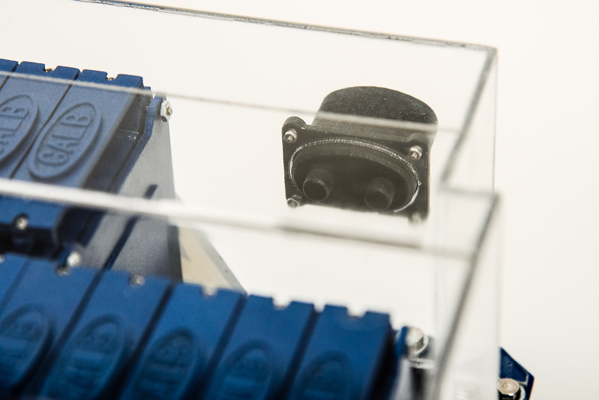

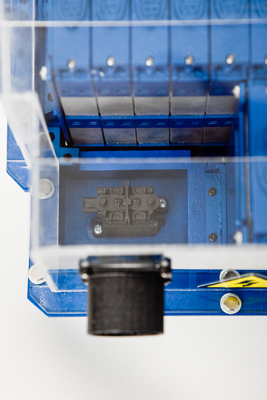

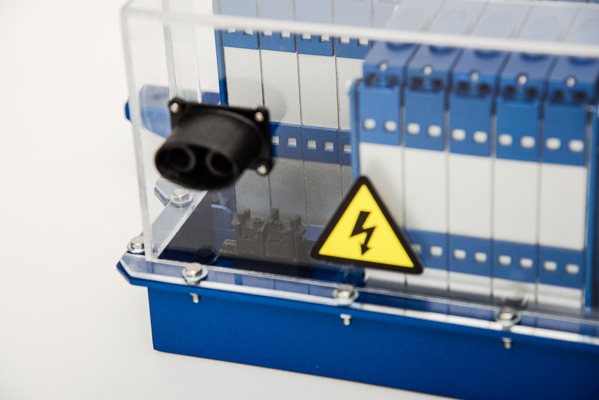

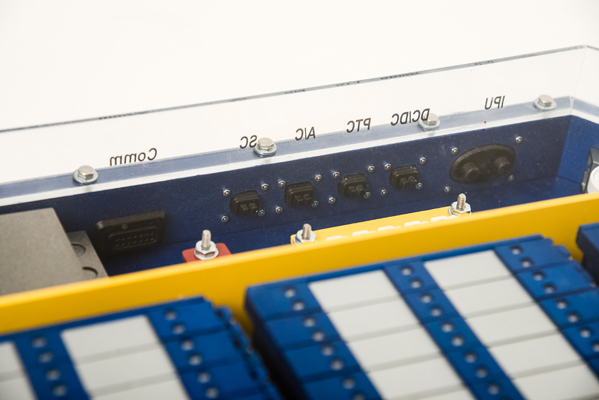

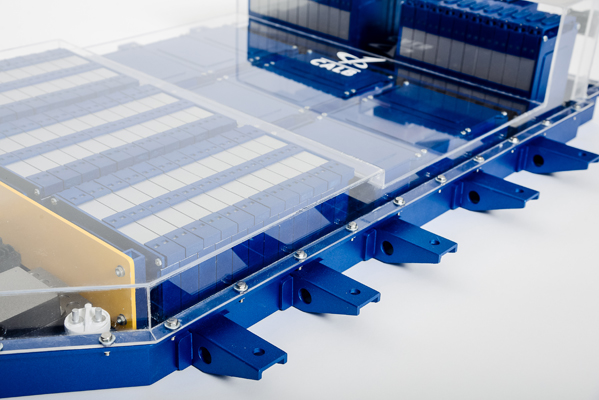

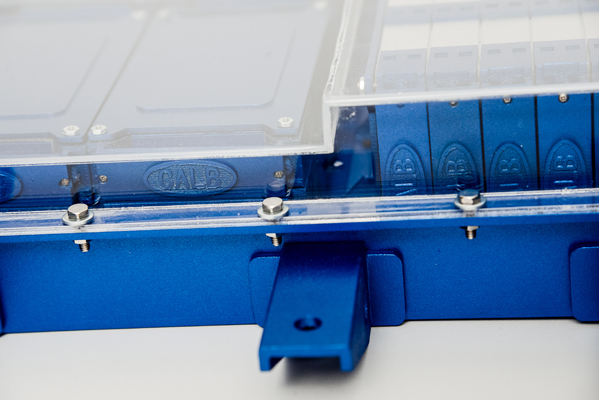

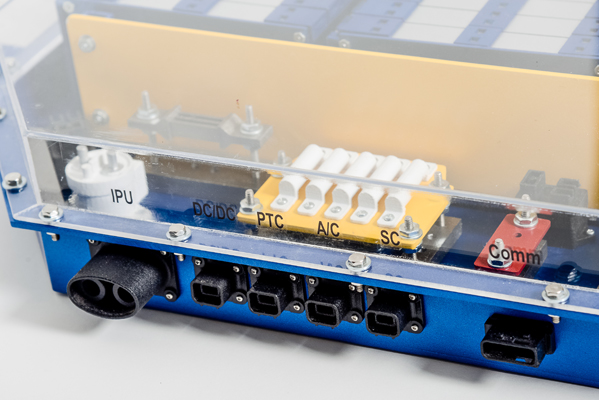

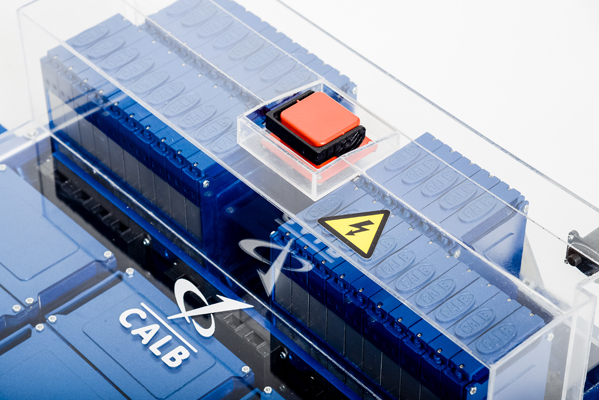

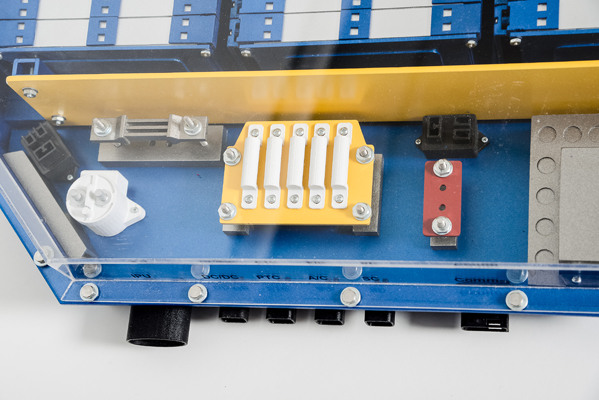

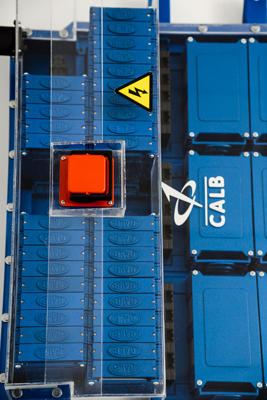

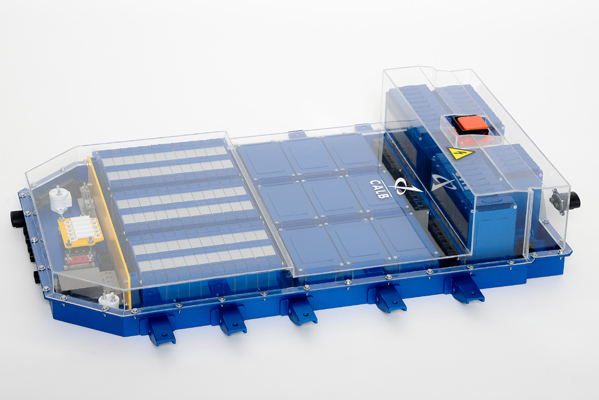

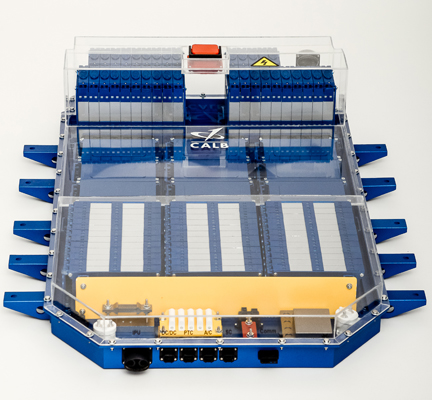

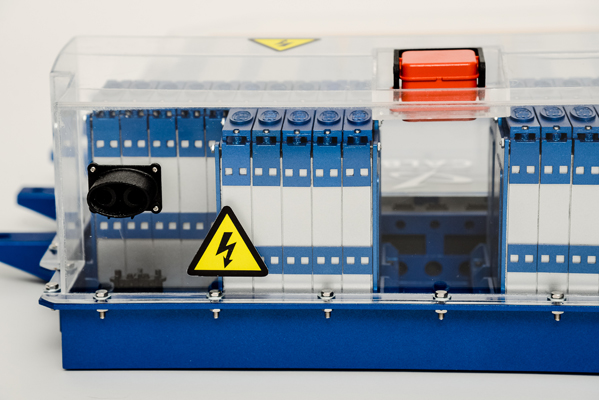

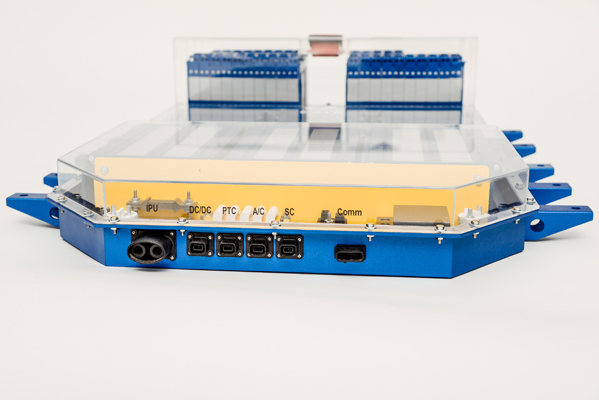

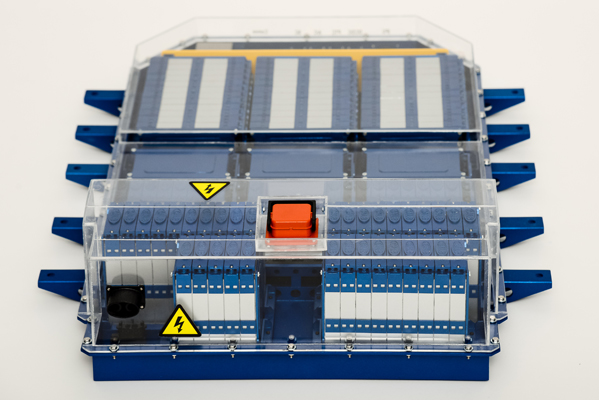

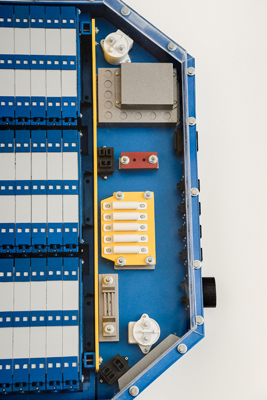

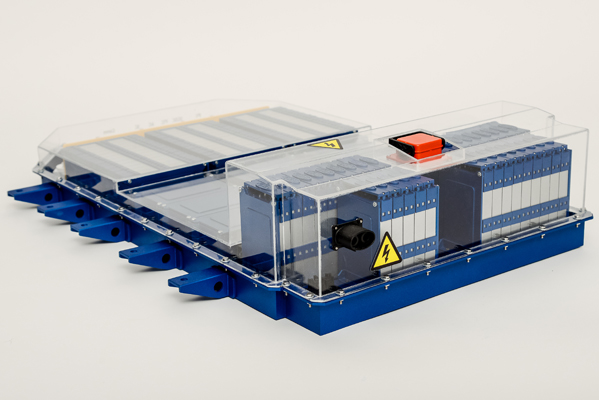

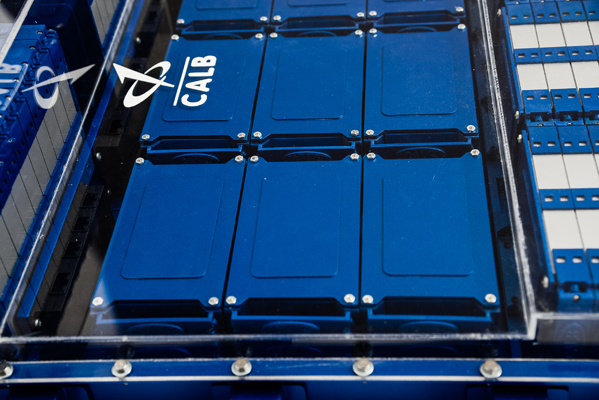

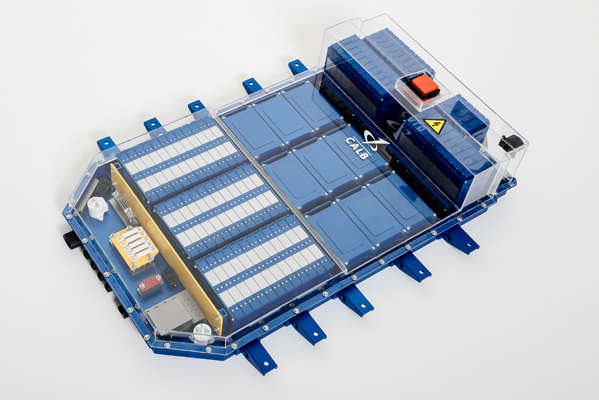

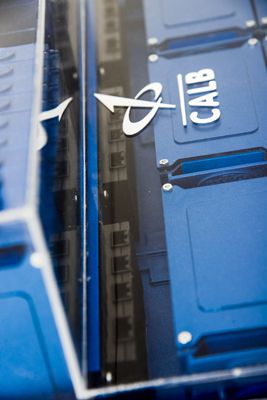

finished model

Photographing: Creative Photography By Maya exclusively for Gamla Model Makers
