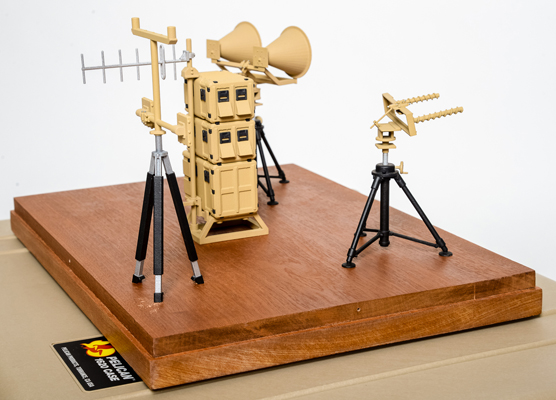

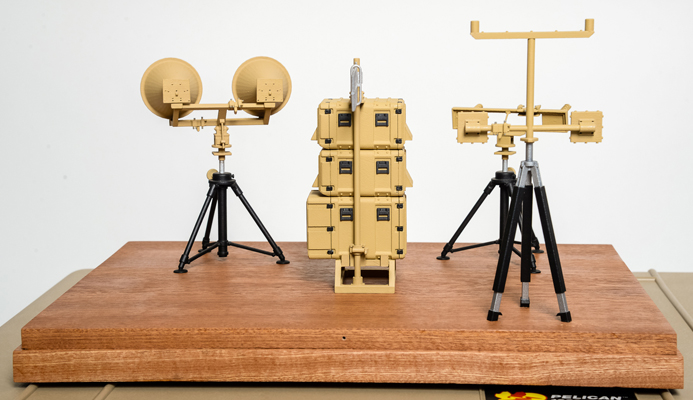

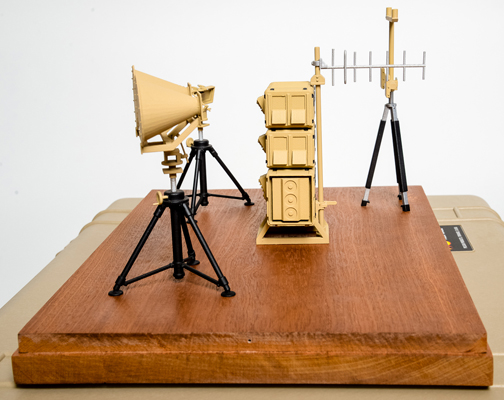

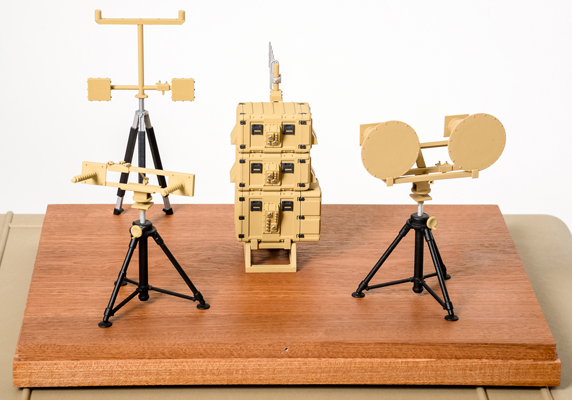

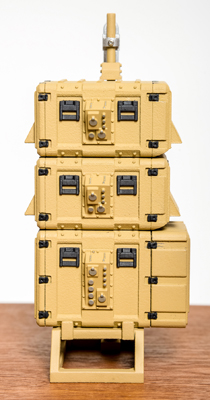

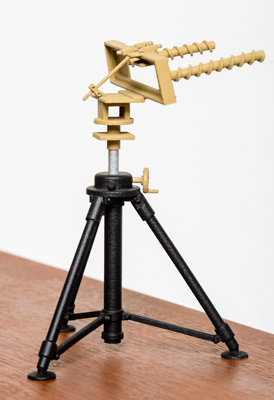

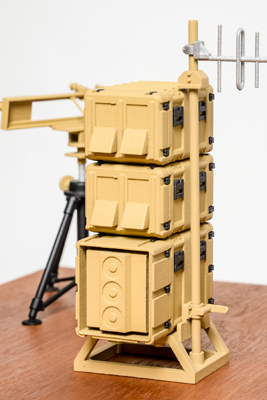

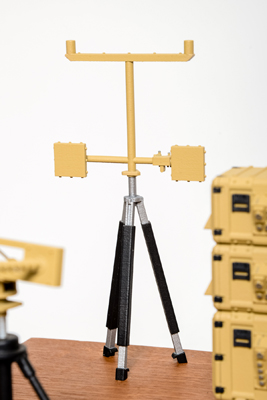

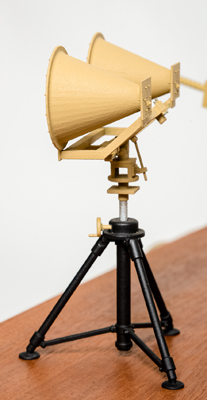

This is a 1:16
scale model of a military field electronic
system, consisting of various elements. This
model is meant for trade shows and
presentations, therefore it produced from high
durability plastic, metal and reinforced with
metal and carbon fiber.
This model was designed in 3D software and
produced entirely by rapid prototyping. It was
assembled and finished manually. Some of the
elements were made with the potion to show the
system in both deployed and packed for
transportation positions. A number of magnets
was incorporated into selected elements to guide
the elements in their assigned positions

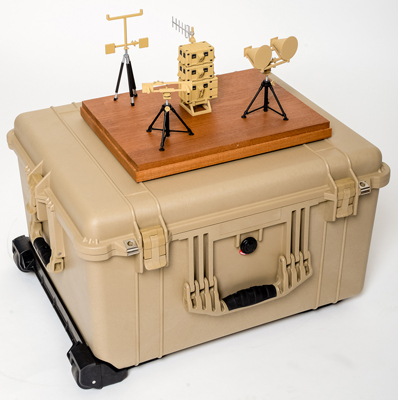

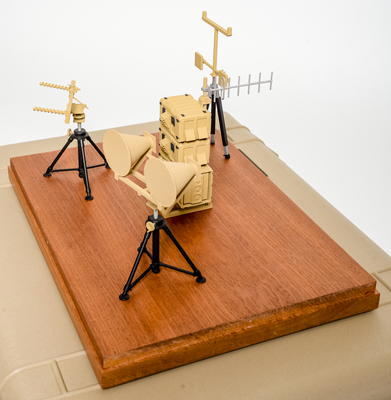

The model is mounted on a mahogany base with a

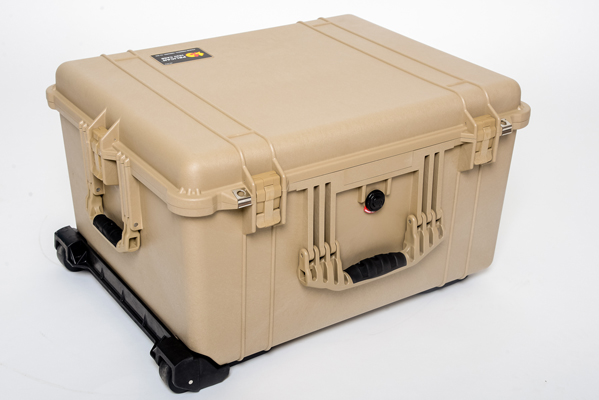

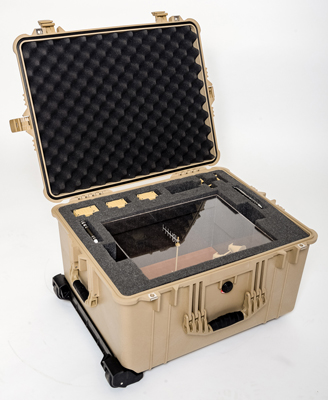

clear protective cover. It is packed in a
military grade Pelican transit case with a
customized foam lining.
The model was appreciated by the customer for
its quality, accuracy and high level of details.
In a week after submission the model headed to
its first trade show.
