1:10 Scale Display Model of Shroud Manipulator



This is a 1:10 scale model/replica of a shroud manipulator/robotic arm designed by CHL Systems (www.chlsystems.com).

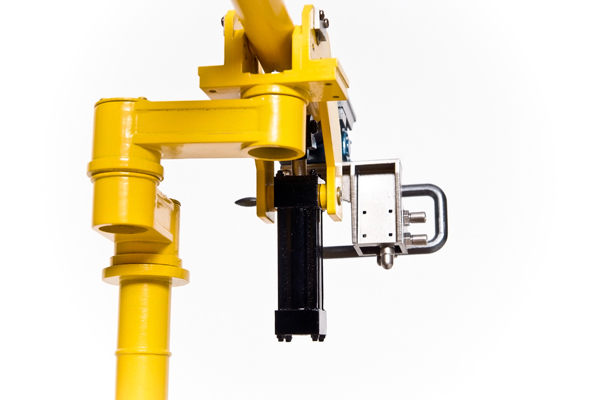

The model was developed digitally in SolidWorks, components were rapid prototyped, than assembled and finished manually. The model is fully articulated, it performs all the moves that a real manipulator does - rotating in three points and tilting. 1/8" stainless steel micro plungers are embedded in each drum which makes the rotation smooth and controlled.
The model is mounted on a custom base finished with rare wood.
Due to the accuracy of the model, high level of detailing and functionality (articulation) this replica, created as an executive desktop model, can be also used for presentations.

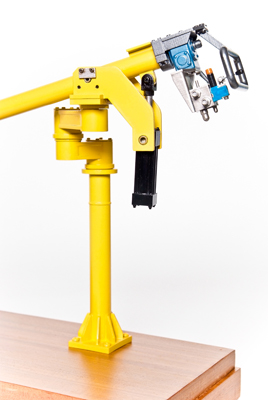

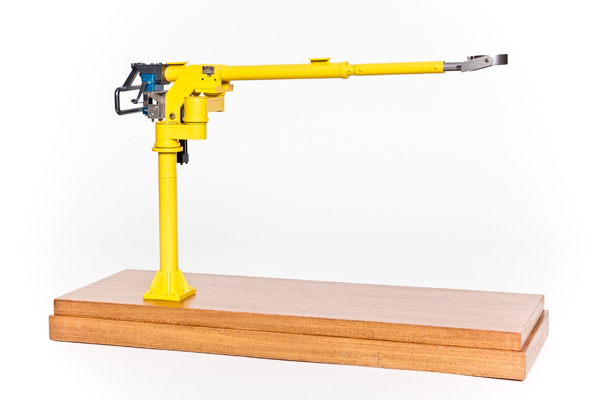

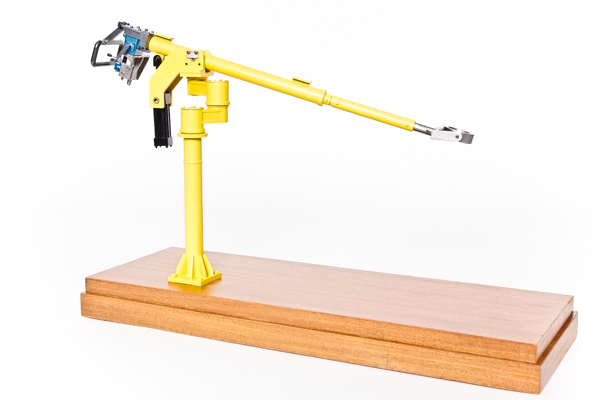

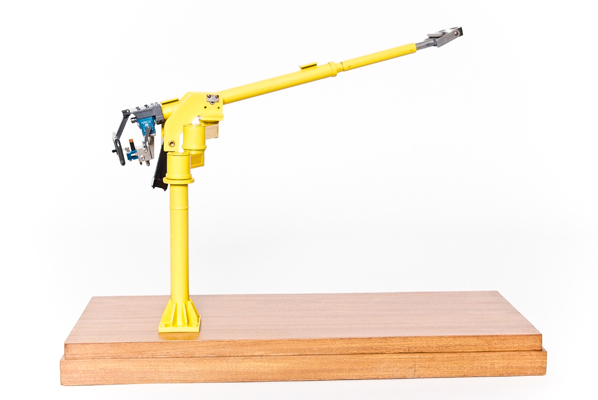

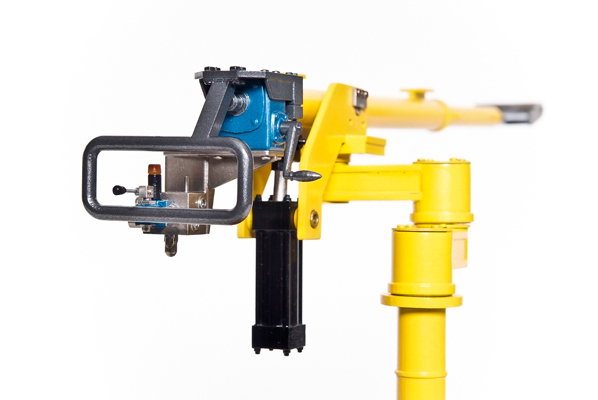

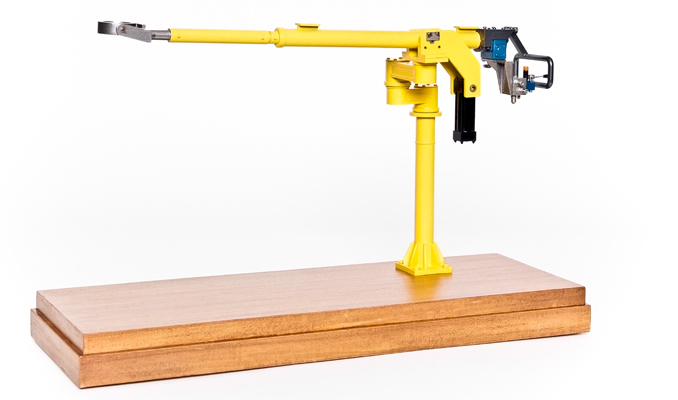

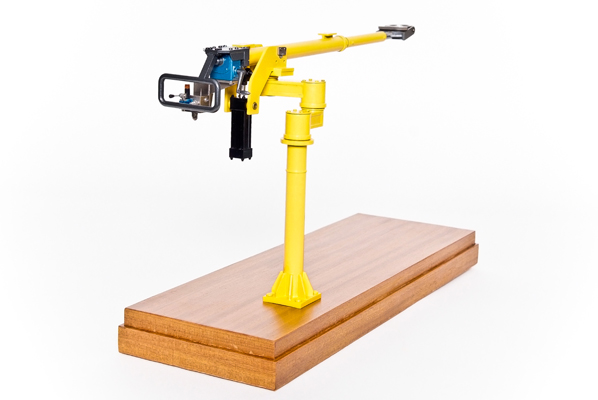

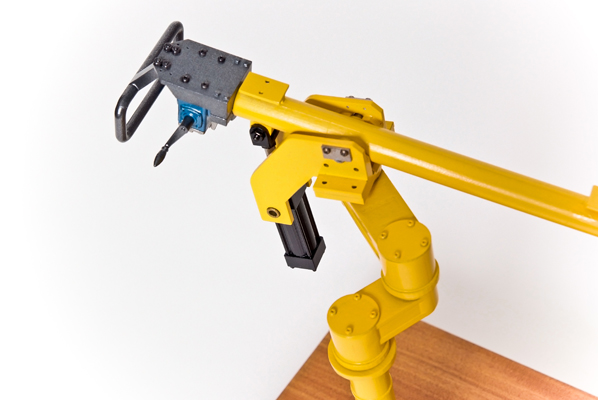

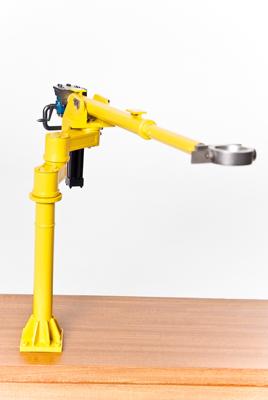

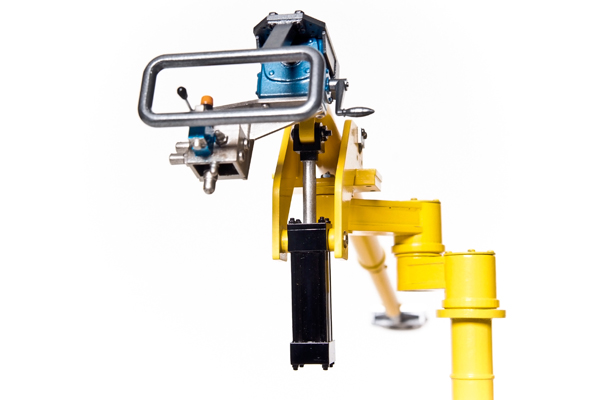

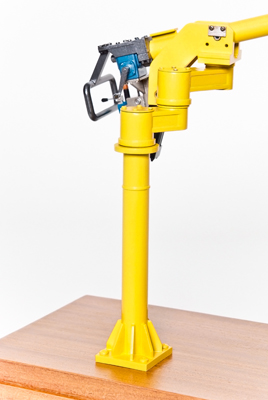

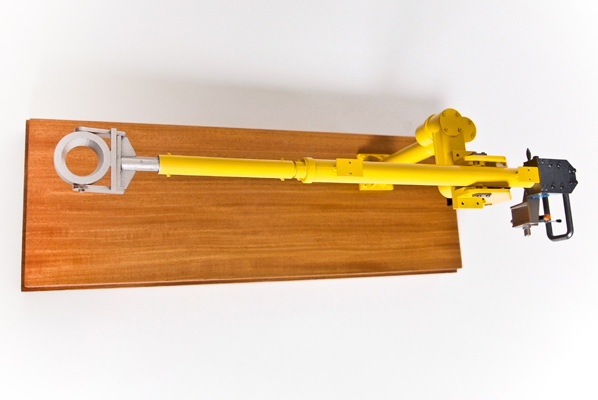

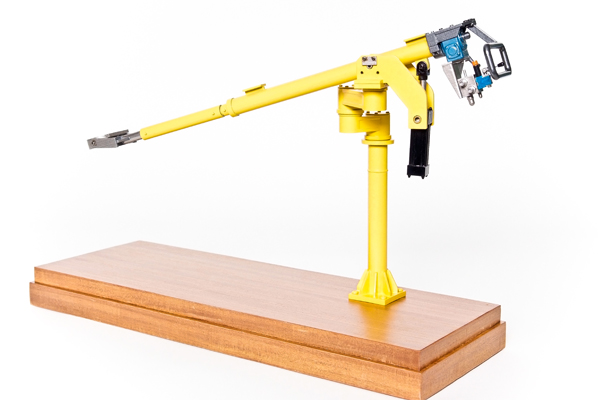

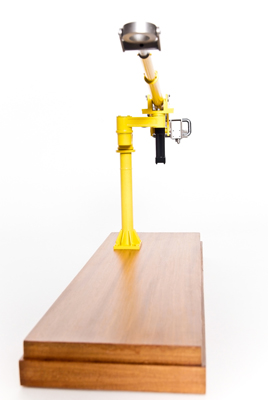

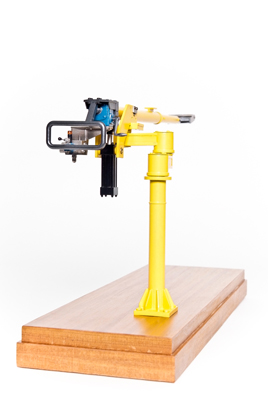

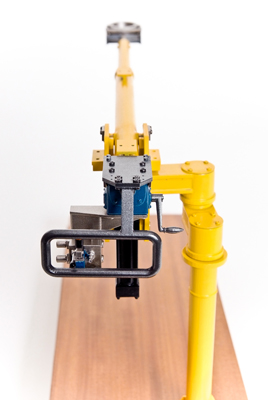

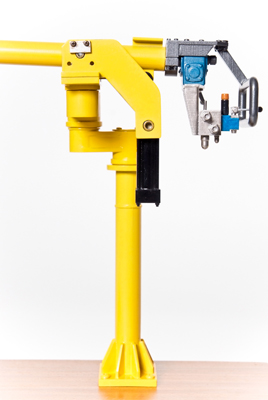

finished model

Photographing: Creative Photography By Maya exclusively for Gamla Model Makers
