1:500 Scale Model of Transmission Lines

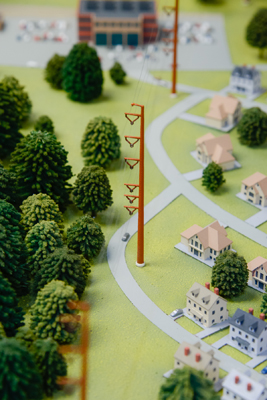

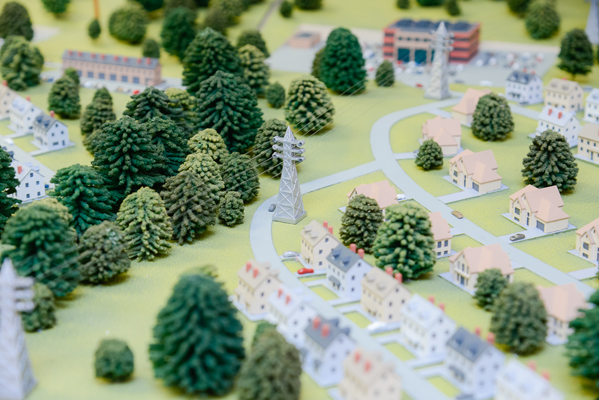

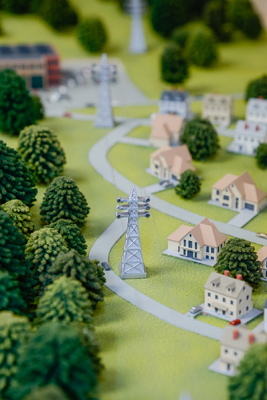

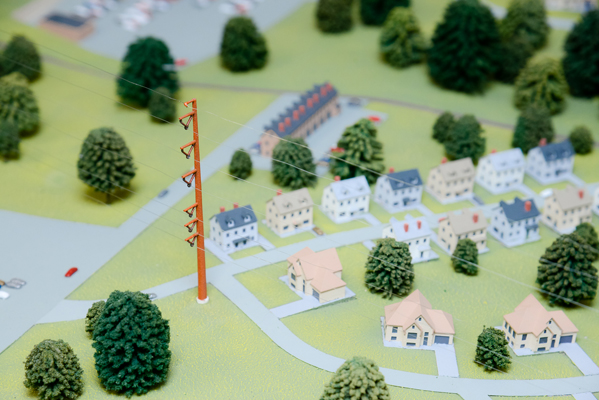

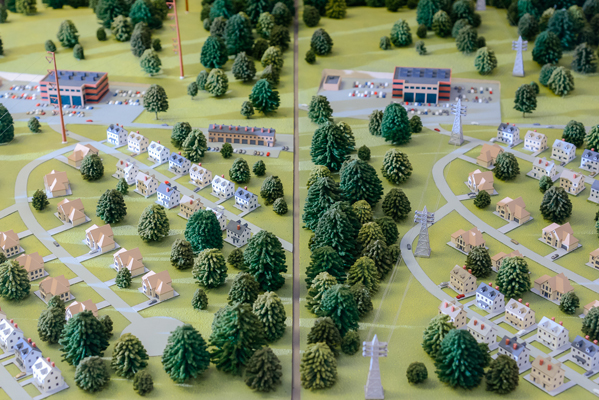

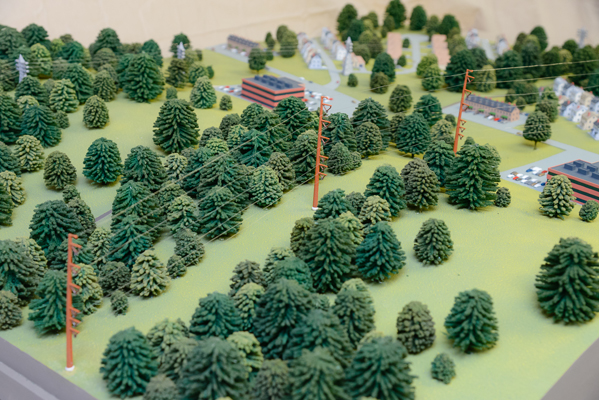

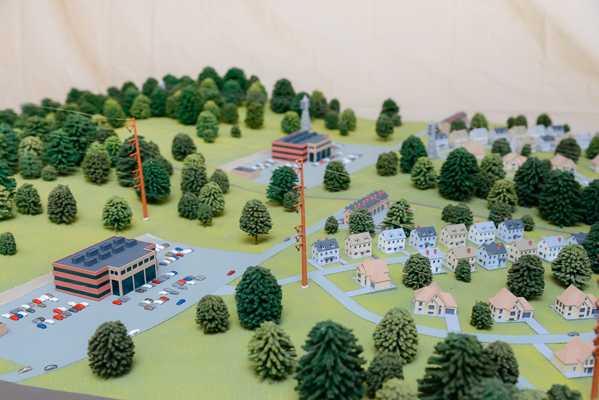

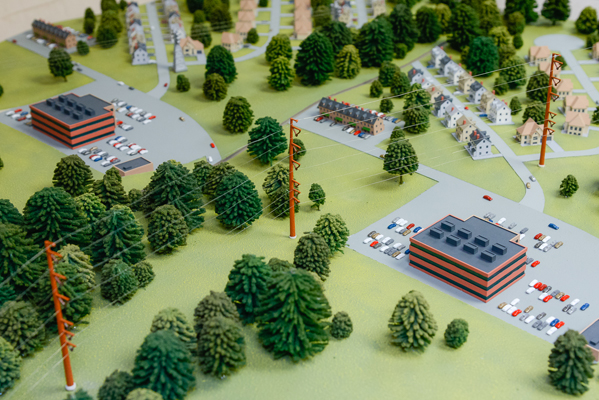

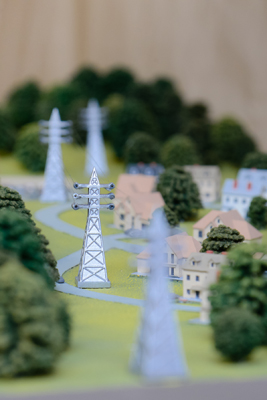

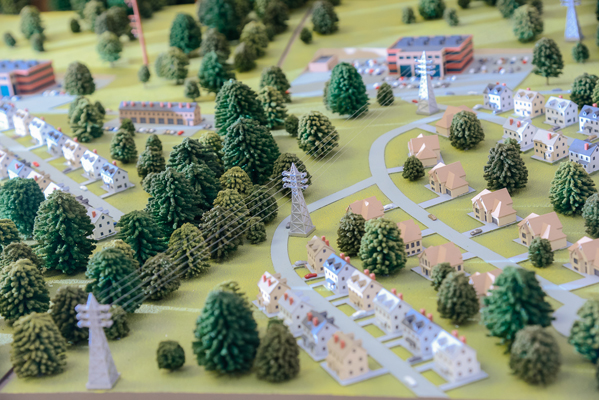

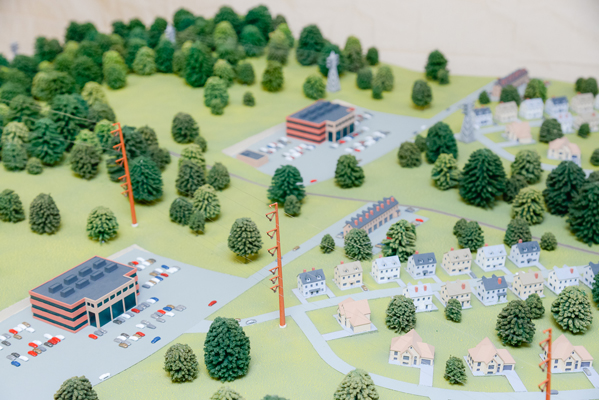

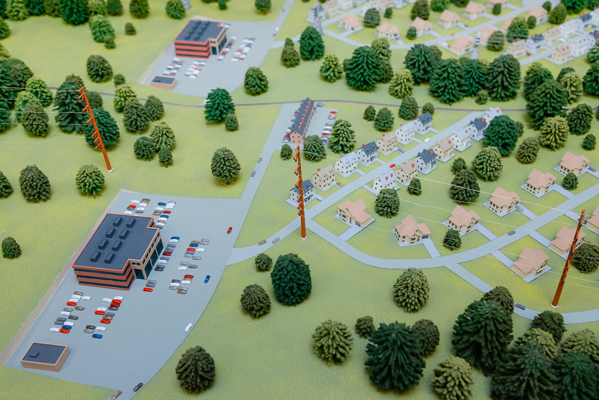

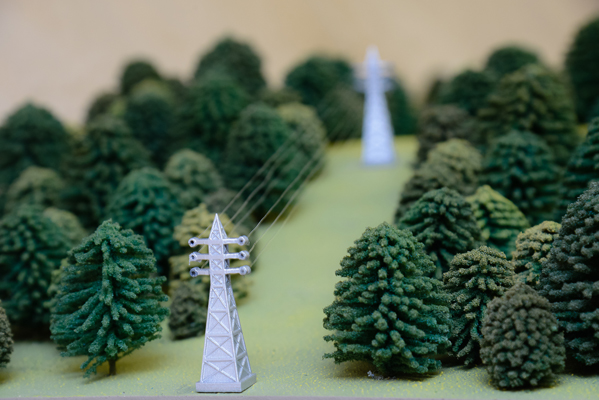

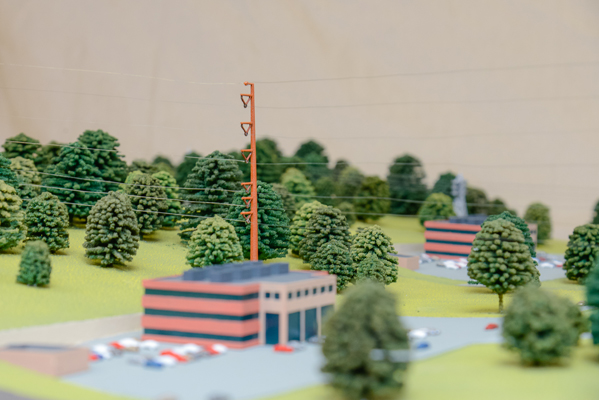

This is an interesting and unusual model. It features two identical strips of a landscape with identical buildings and a forested area. Each strip, however, shows a different setup of transmission lines - an older one and a newer, innovative one. Each setup accurately represents the poles, distances between them and the way transmission lines are being run through hills, forest, residential and commercial zones. The model is built in 1:500 scale, allowing a sensible level of detailing. All the buildings were 3D developed and rapid prototyped. Needless to say, there was a large amount of model trees spent on this model. The model is meant for presentations and trade shows, it is self explanatory and showing clearly the benefits offered by the newer transmission lines setup. The model's quality and accuracy was recognized by the customer and the viewers.

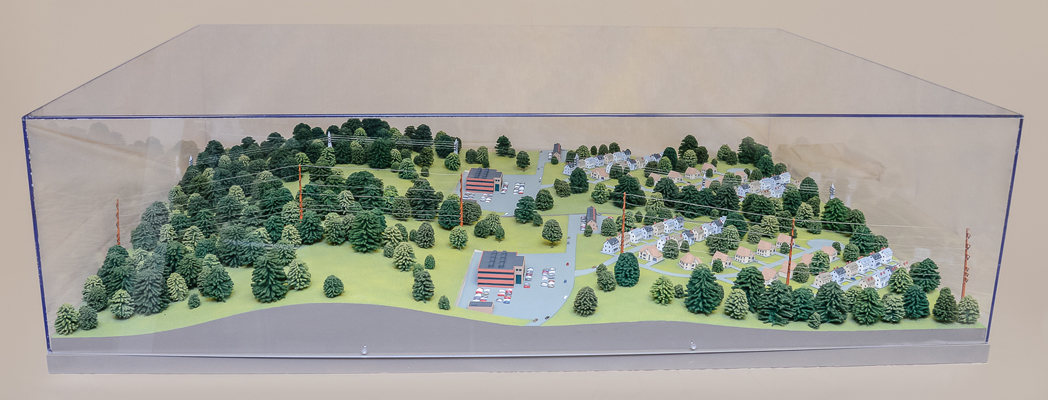

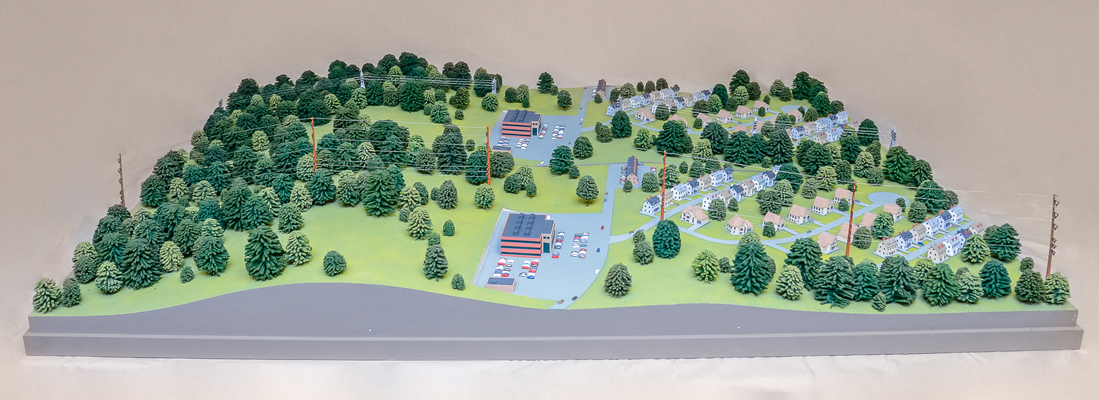

completed model

Photographing: Creative Photography By Maya exclusively for Gamla Model Makers
