1:16 scale Model of the Walk-In Water Tank

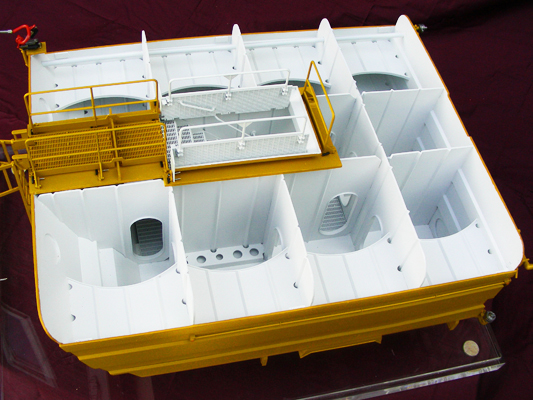

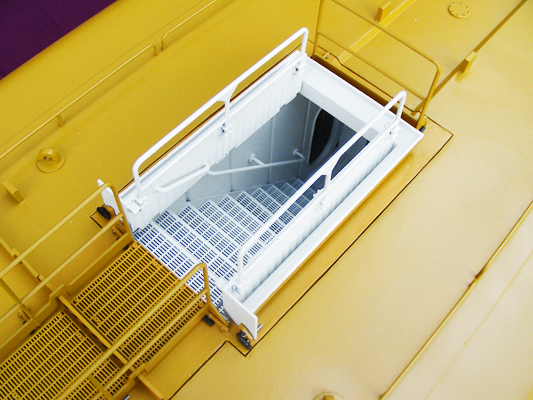

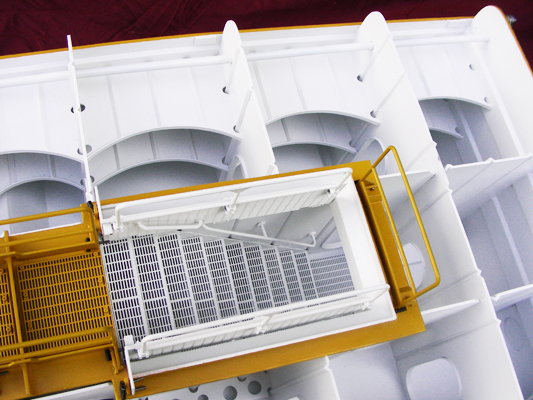

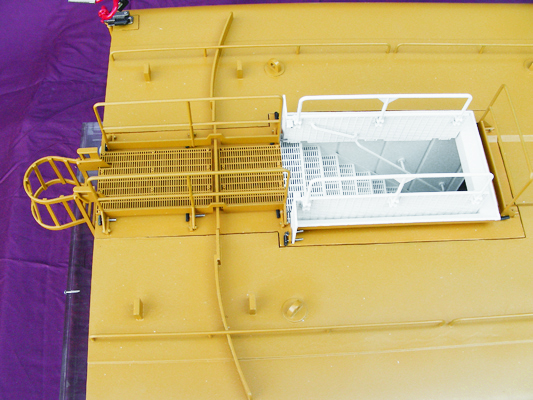

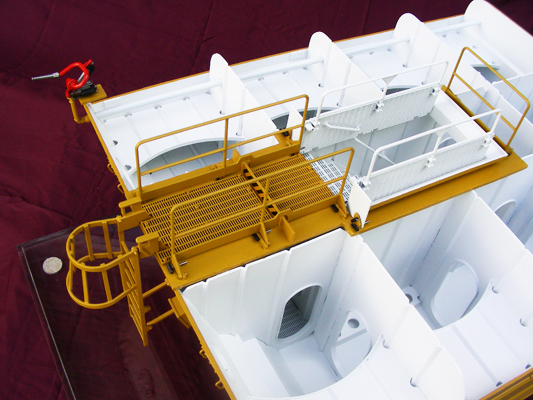

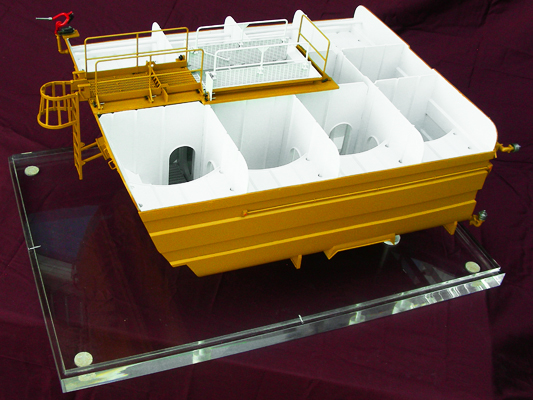

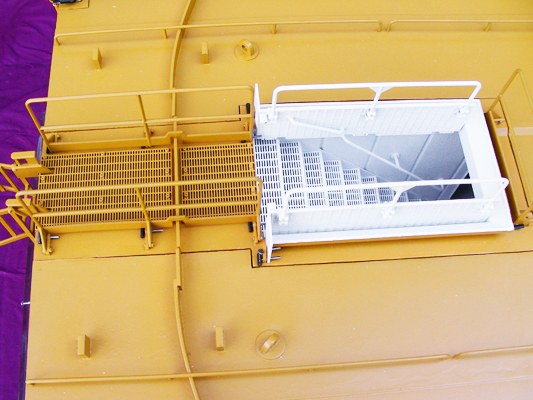

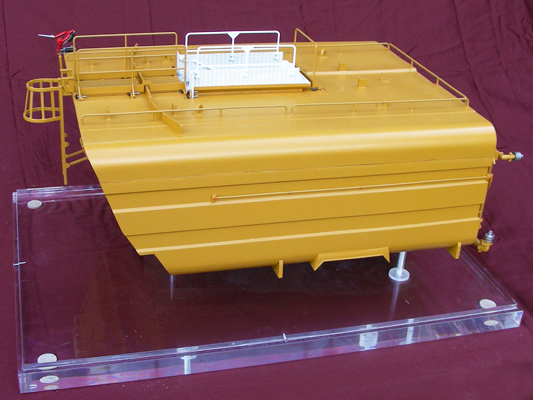

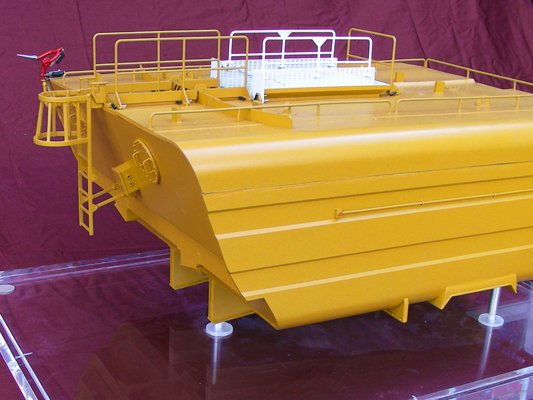

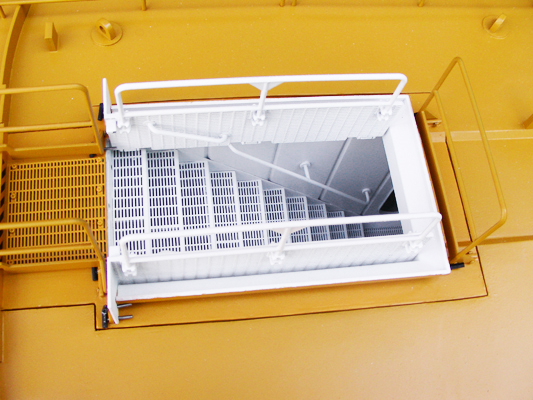

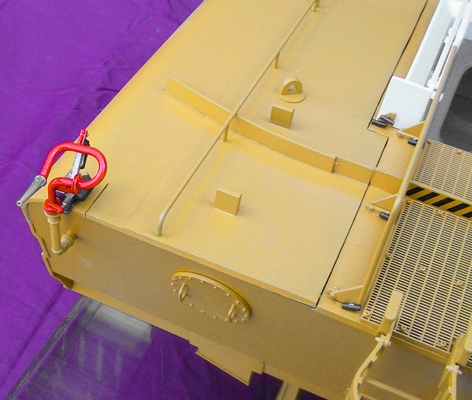

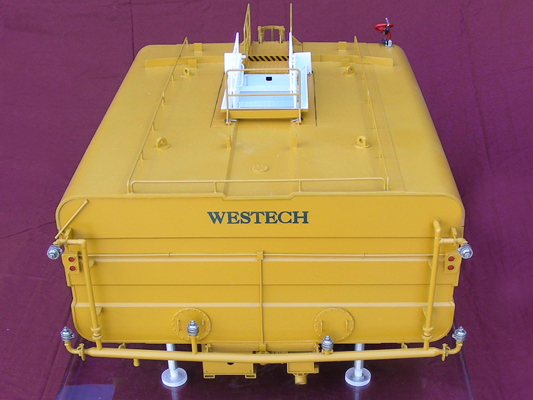

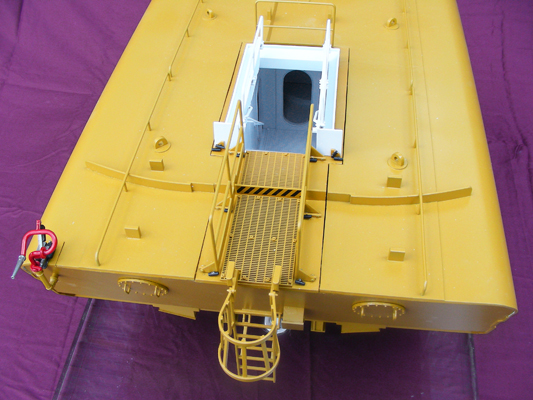

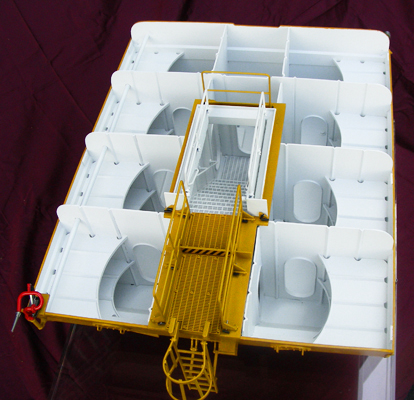

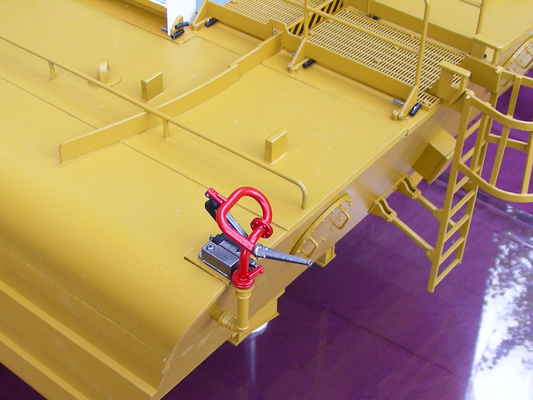

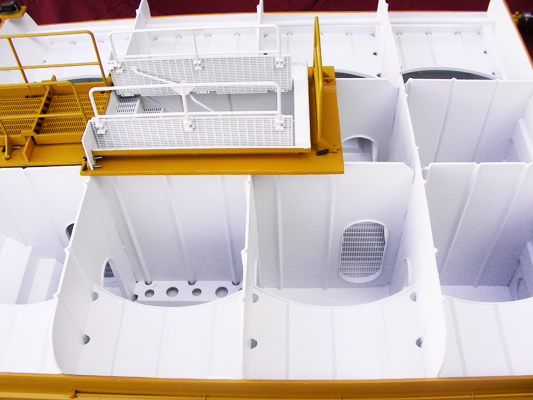

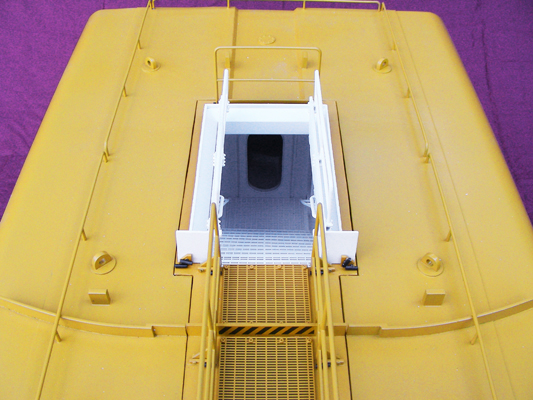

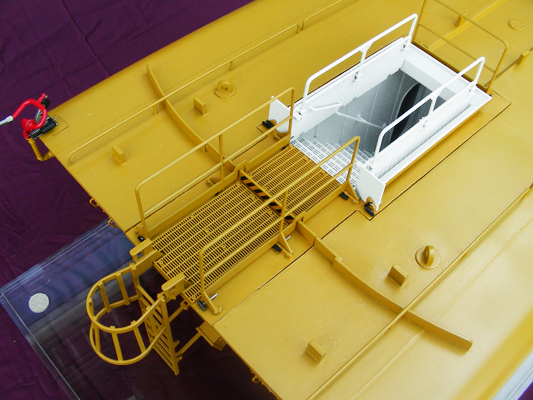

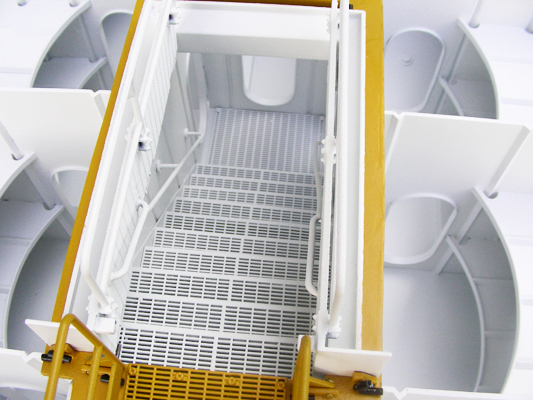

This is a model of walk-in water tank, an exciting and innovative piece of mining equipment. The model is designed to be exhibited at trade shows and presentations. It's features include removable top, full interior, walk-in stairway and working stairway doors. All tall railings on the water tank's roof are folding down. This model is considered highly functional, as whatever elements articulate on the subject, they articulate on the model as well.
Like all our models this one was developed digitally in 3D (Solidworks). The model was fabricated out of styrene and acrylic, with selected pats and components being rapid prototyped, including direct metal deposit.
In order to transport the model we designed three sets of transit cases - one for short range ground transportation in heavy duty ATA transit case and two for air transportation (in brief and full configuration) in smaller and lighter luggage type transit cases.

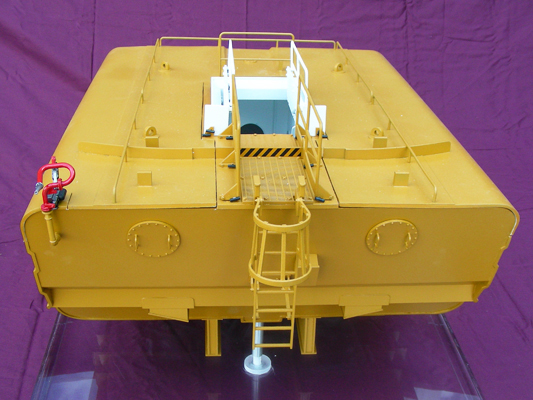

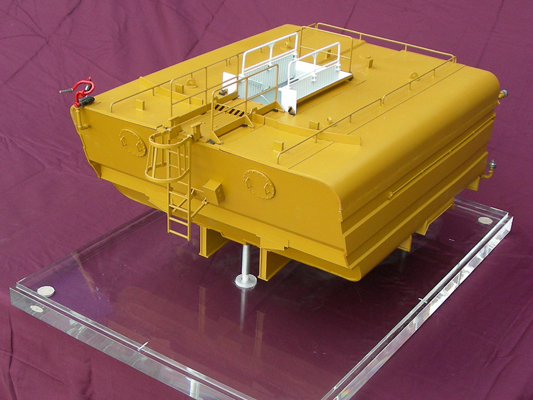

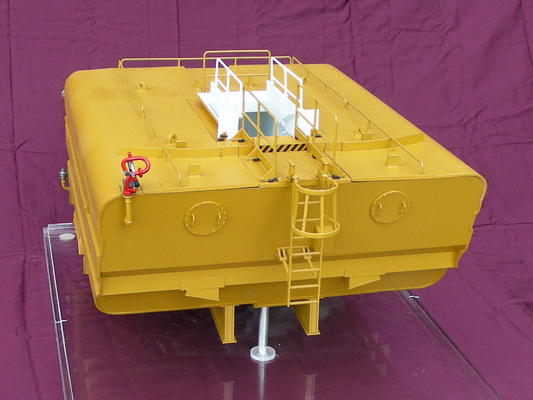

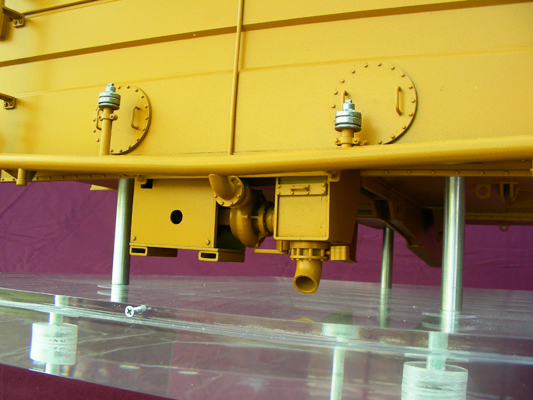

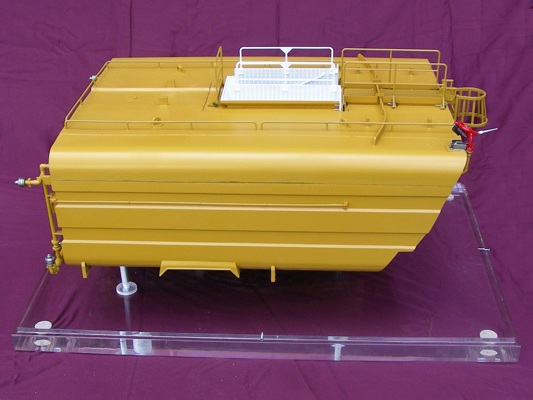

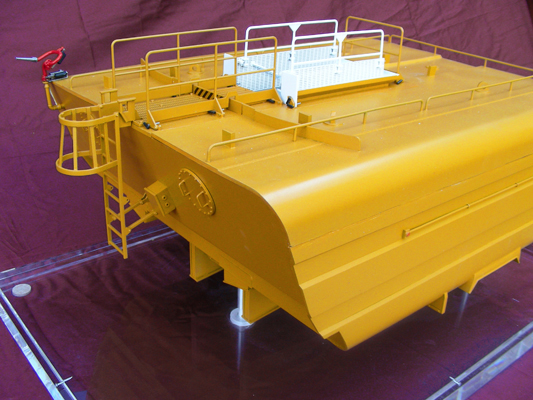

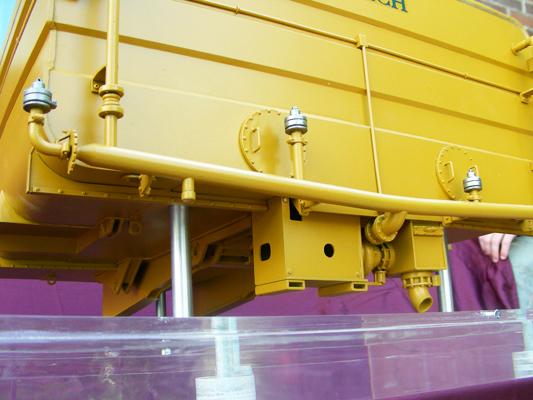

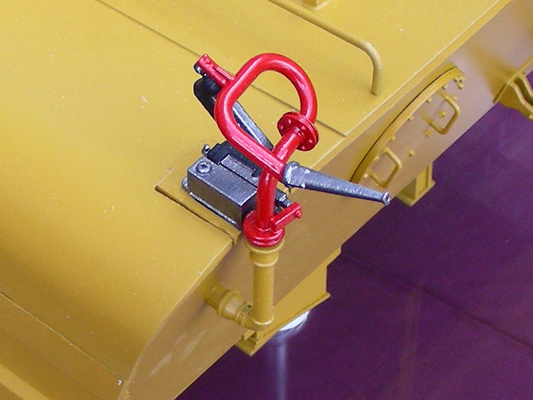

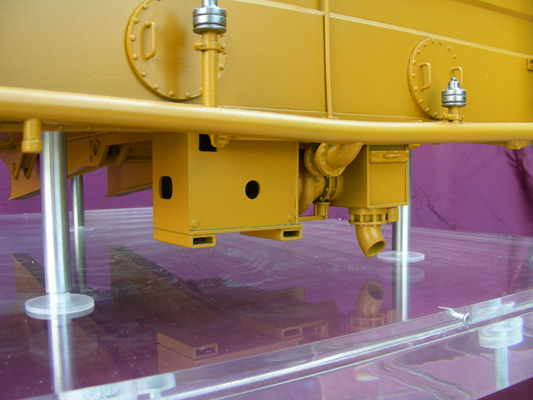

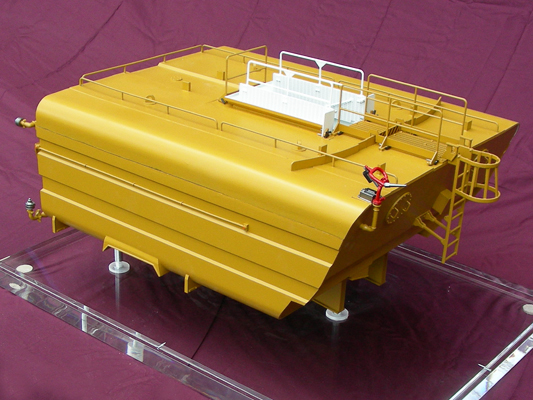

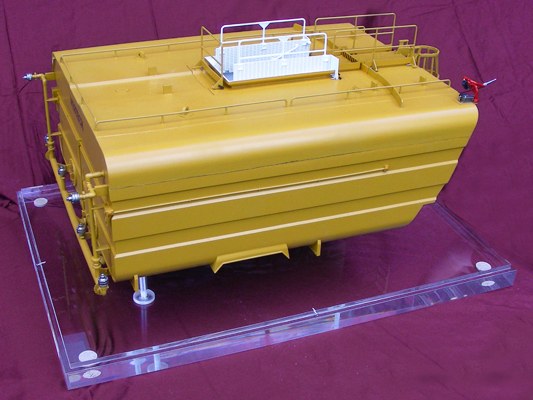

finished model

Photographing: Creative Photography By Maya exclusively for Gamla Model Makers
